New Speedo - Install Time

Got a New GPS Speedometer from Speedhut
With the Right Options Picked, it Looks Almost Stock
Here's How I Fit it in the Stock Pod

First Step Remove The Column Cover


Next Pull the Dash Cover (If You Have One)

The Speedo is Held in by Two Wing Nuts
Almost Impossible to Get Off by Hand

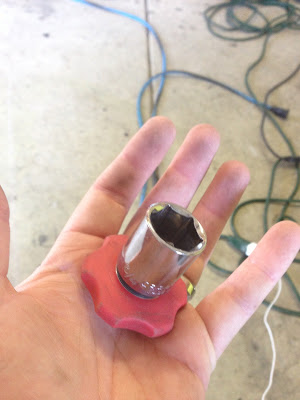

Easy Removal is Done Via a 3/4" Socket



Boom


With the Dash Cap Out of the Way
And
The Two Wing Nuts Removed the Speedo Slides Out The Front of the Dash


Disconnect the:
Gauge Lights
Trip Reset Cable
Speedo Cable
& Remove Speedo

Now Get Ready To Disassemble the Speedo

Remove the Four Screws Holding the Gauge Shroud to the Gauge Body


Compare Gauges
Old vs New
Looks Pretty Similar


Carefully Remove the Guts of the Gauge
Retain the Gauge Body
Insert New Gauge into Old Gauge Body
Slide New Wires Through the Rear of the Gauge
Use Old Gauge Shroud to Stabilize New Gauge in Gauge Body





 Wire Up Per Instructions
Place GPS Antenna in Your Ideal Location
I Put It on the Metal Dash Valance w/the Defrost Vents

Finished Product
Same Install Method for Install of Tach
